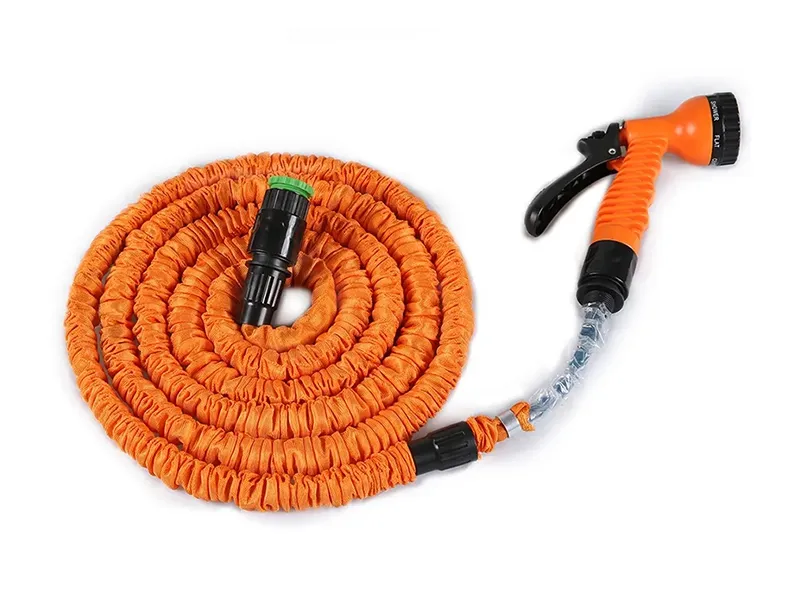

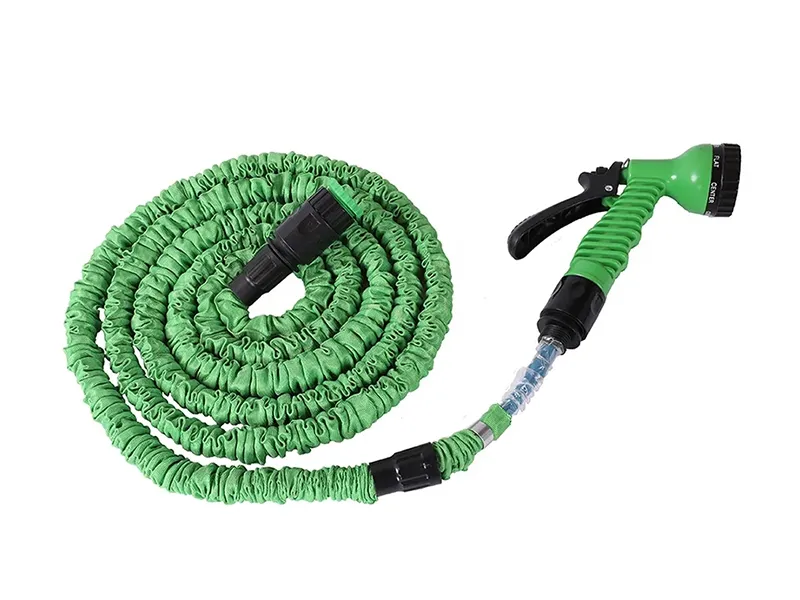

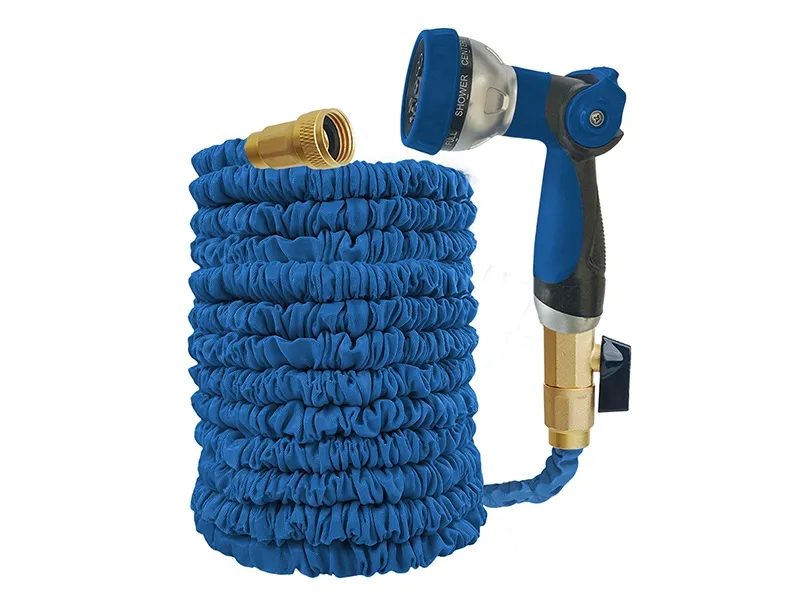

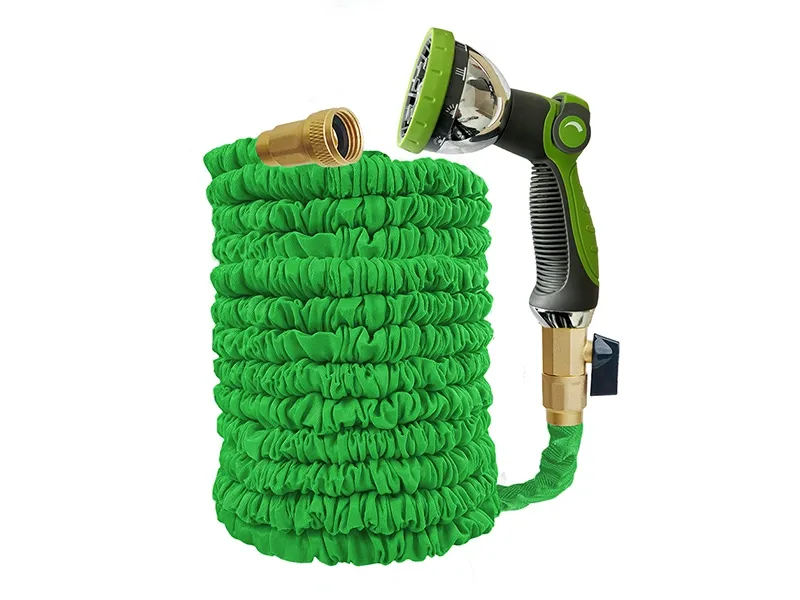

150ft Triple Layer Garden Hose
  • 150ft Triple Layer Garden Hose
  • 150ft Triple Layer Garden Hose
  • 150ft Triple Layer Garden Hose
  • 150ft Triple Layer Garden Hose
  • 150ft Triple Layer Garden Hose

150ft Triple Layer Garden Hose

  • Inner Diameter 6 mm
  • Length 5–45 m, customizable
  • Working Pressure 3–6 bar
  • Burst Pressure 20 bar
  • Operating Temperature -10°C to 65°C
  • Material TPE or latex inner tube; polyester fabric cover

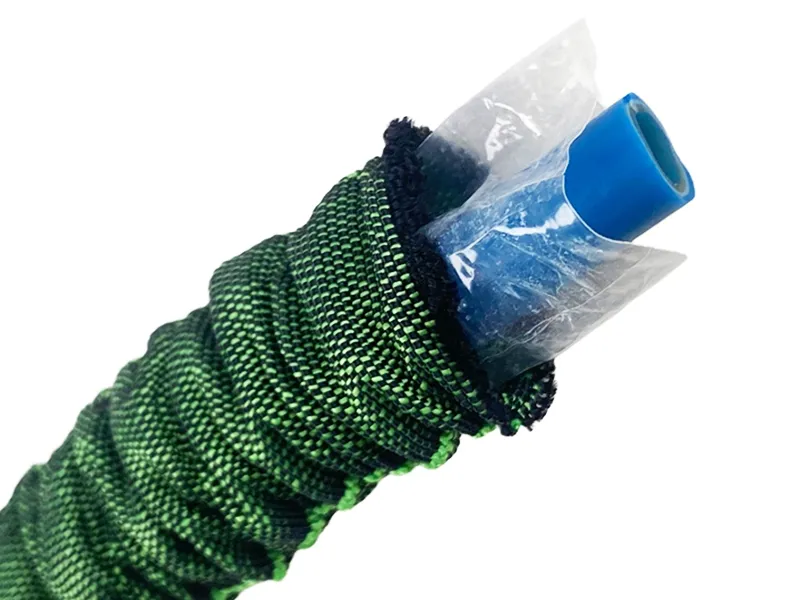

Triple-layer expandable garden hoses are available in lengths up to 150 ft and combine a TPE or natural latex inner tube with a separating film and a polyester fabric cover. Under normal water pressure, the inner tube can extend to around 2.5 to 3 times its original length and recover after when water supply stops. They have an outer cover that protects against abrasion and limits excessive expansion, while the separating film reduces rubbing between the inner tube and fabric cover. The outer cover protects against abrasion and limits expansion, while the separating film reduces rubbing between the inner tube and fabric cover to decrease wear and improve fatigue resistance during repeated use.

Contact Us
Parameters
Inner Diameter 6 mm
Outer Diameter 9.5 mm
Length 5–45 m, customizable
Working Pressure 3–6 bar
Burst Pressure 20 bar
Material TPE or latex inner tube; polyester fabric cover
Operating Temperature -10°C to 65°C
UV Resistance UV-resistant additives can be added
Fitting Type Threaded / quick-connect / clamp-on
Fitting Material Brass, ABS, aluminum
Features
  • Extends to about three times its original length during use, then returns to a compact size for easier storage.
  • The TPE or natural latex inner tube keeps good flexibility in both hot and cold weather.
  • The thin protective film between the inner tube and the polyester cover stops the two layers from rubbing directly against each other and reduces wear on the inner tube during repeated expansion and contraction.
  • The polyester cover limits excessive expansion and adds abrasion protection, reducing the chance of bursting during use.
Helen is a hose manufacturer specializing in the development, production, and export of garden hoses and pressure washer hoses. Its products are designed for applications such as garden irrigation, car washing, and high-pressure cleaning, with customization available in materials, structures, sizes, and packaging to meet the needs of international customers. Helen achieves a daily output of 60,000 units and an annual capacity of 20 million units.
